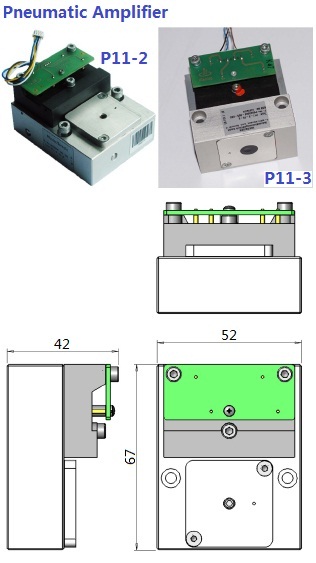

EP11-2/3 pneumatic amplifier with aluminum case
EP11-2/3 pneumatic amplifier manufactured by CNC with aluminum alloy, suitable for personalized products , extended function, customized. Piezo valve as pilot, convert electrical signals to pressure, work at switch mode.
| Pneumatic Characteristics |  |
||||
| Supply pressure | Min/Max | bar | 1.4-7.0 | ||
| Flow | Qn | l/min | 130@6bar | ||
| Medium | Filtered air @30µM | ||||
| no or minimal oil | |||||
| (max 30mg/m³) | |||||
| Electrical Characteristics | |||||
| Operationg voltage | VDC | 24 | |||
| Capacity | C | nF | <100 | ||
| Switching current | Id | µA | 10 | ||
| Holding current | Id | µA | 0 | ||
| PWM control | % | 12-80mS | |||
| Switching time | ms | On :<20@10% discharge | |||
| ms | OFF:<20@90% discharge | Order No: | P11-2 | ||
| Temperature range | Min/Max | ℃ | 3060 | Order No: | P11-3 |
