Proportional pressure/flow regulator ,TECNO Basic/Plus/Vacumm

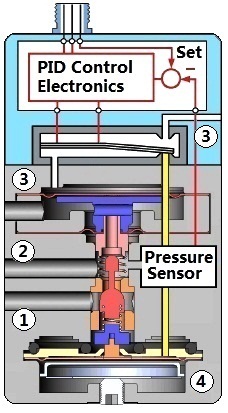

TECNO regulator series is a proportional pressure control valves based on piezo valve as a pilot, piezo valve has higher dynamic performance and regulation accuracy at lower power cost, its min power consumption 30mW. The main valve provide high flow and exhaust capacity, max input pressure up to 14bar, flow to 1600 l/min.
Actual pressure feedback output, multi-linear correction, temperature compensation range 0-60°C, real-time integrated electronic close loop control will automatically reduces the error less than 0.5% betwen output pressure and setpoint.
Vacuum proportional pressure valve can convert electric signal to vacuum and positive pressure composite output, the effective control range -1.0bar pressure to 2.0bar;
0.1bar super lower pressure range proportional pressure valve provides 0.5% accuracy，max flow rate to 16l / min.
Ultra-low-flow proportional pressure valve output min flow 1.5l / min at 1bar.

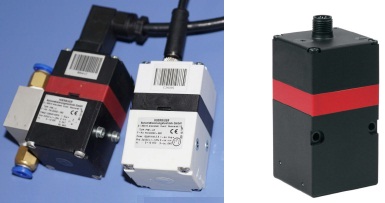

●TECNO Basic Proportional pressure regulator
●TECNO Plus High flow / pressure proportional pressure regulator
●TECNO Vacuum Pressure / vacuum proportional pressure regulator
●TECNO Basic/Plus/Vacumm
●TECNO Basic/Plus/Vacumm in application field
Vacuum proportional pressure valve can convert electric signal to vacuum and positive pressure composite output, the effective control range -1.0bar pressure to 2.0bar;
0.1bar super lower pressure range proportional pressure valve provides 0.5% accuracy，max flow rate to 16l / min.
Ultra-low-flow proportional pressure valve output min flow 1.5l / min at 1bar.
 |
 |
| Basic Type Large flow high pressure / vacuum pressure type TECNO Basic TECNO Plus/ TECNO Vacuum |
|
| 1 Power 24VDC/13mA 3/4 wires(Voltage) ; 4-20mA two-Wires 2 Setpoint 0-10VDC, Only voltage type 3 Supply Min=1.4bar, Compressed air or neutral gas TECNO Plus/ Vacuum, in/out/exhaust lead pipelines 4 Output 0-8bar, Vacuum -0.9 to 1bar 5 Actual Pout 1.25-6.25VDC(Min to Max), Current type without 6 Alarm Out Low active, TECNO Basic without |
|
| P1 Compress air supply P2 Pressure output P3 Exhaust ; Lead to pipline for TECNO Plus/Vacuum |
●TECNO Basic Proportional pressure regulator
| Output | Compress air supply | Flow | Air Consum. |
Acc. | Repeat. Acc. |
Response Acc. |
Resp. Time |
Order No. | |
| Range | P1 Min | P1 Max | l/min | Ml/min | % | % | % | mS | |
| 0-0.1bar | 0.5 | 0.8 | 16 | ≤0.4 | 5.0 | 3.0 | <0.5 | 7.0 | ET1200XX-001-015 |
| 0-0.2bar | 1.5 | 2.5 | 100 | ≤0.4 | 1.0 | 0.5 | <0.5 | PS1200XX-002-015 | |
| 0-0.5bar | 150 | ≤0.5 | 1.0 | 0.3 | <0.3 | ET1200XX-005-015 | |||
| 0-1.0bar | 1.5 | 5.0 | 200 | 0.5 | 0.1 | <0.1 | ET1200XX-010-015 | ||
| 0-1.5bar | 1.5 | 10.0 | ET1200XX-015-015 | ||||||
| 0-2.0bar | PS1200XX-020-015 | ||||||||
| 0-3.0bar | ET1200XX-030-015 | ||||||||
| 0-4.0bar | ET1200XX-040-015 | ||||||||
| 0-6.0bar | 300 | ET1200XX-060-015 | |||||||
| 0-8.0bar | 350 | ≤0.5 | PS1200XX-080-015 | ||||||
| Remark: Other range on request EP/PS1200XX-080-015 XX=00 PRE-U/ 01 PRE-I 4-20mA/ 02 PRE-U+Feedback / 03 PRE-U+EMC / 04 PRE-I+EMC |
|||||||||
| Output | Compress air supply | Flow | Air Consum. |
Acc. | Repeat. Acc. |
Response Acc. |
Resp. Time |
Order No. | |
| Range | P1 Min | P1 Max | l/min | Ml/min | % | % | % | mS | |
| 0-2.0bar | 1.5 | 10.0 | 1100 | ≤1.5 | 0.5 | 0.2 | <0.2 | 7.0 | PS1201XX-020-015 |
| 0-6.0bar | 1600 | PS1201XX-060-015 | |||||||
| 0-8.0bar | ET1201XX-080-015 | ||||||||
| Remark: Other range on request PS1201XX-080-015 XX=00 PRU-E / 01 PRU-I 4-20mA |
|||||||||
●TECNO Vacuum Pressure / vacuum proportional pressure regulator
| Output | Compress air supply | Flow | Air Consum. |
Acc. | Repeat. Acc. |
Response Acc. |
Resp. Time |
Order No. | |
| Range | P1 Min | P1 Max | l/min | Ml/min | % | % | % | mS | |
| -0.9 to 1 | 1.5 | 2.5 | ---- | ≤1.5 | 1 | 0.5 | 0.5 | 7 | PS120100-A20 |
| Connector： P1 Supply P2 Pressure/Vacuum output P3 to Vacuum Source （Vacuum pump) | |||||||||

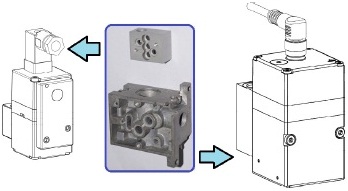

●TECNO Basic/Plus/Vacumm
| TECNO Basic 37x36x70 Weight: 200g TECNO Plus/Vaccum 46x46x90 weight: 400g Previous type: PS11110-B PS11113-B PS11130-B-20 PS11139-B-02 PS11140-B-01 PS11142-B-01 PS11150-B-01 PS 11151-B-01 PS11162-B-02 PS11164-B PS11165-B-02 PS11168-B PS11169-B-02 |
 |

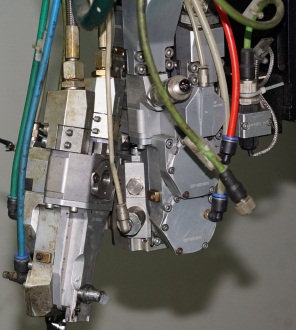

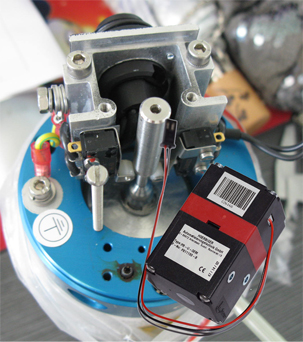

●TECNO Basic/Plus/Vacumm in application field
 |
Tension Control Optic fiber, wire line, textile threads
Edge guide system Bill printing, papermaking
Blowing control Rubber tires and glass blowing, seed screeningMedical Support Breathe and anesthesia machine and noninvasive Blood Pressure Melting control Laser welding and cutting , Burning help Vacuum control Melting furnace, Magnetron sputtering, Vacuum coating Seals machine Chip package, SMT machine, painting r robot Aerodynamics Aerodynamic models test, Miniature nozzle measuring, Leak instrument |
| Order： PR-U-OEM PS11193B PS11228 OEM module | |
 |
 |
