ESPOS Smart Electropneumatic Positioner


High-integrated pneumatic amplifier with piezo pilot control actuator quickly and high accuracy positioning, ESPOS series positioner can resist or absorb the electric noise from signal cable or outside, the back-light LCD is useful when Installation location light is insufficient . ESPOS positioner assembled to single/double action actuator with fail safe or fail in place , 4-20mA position feedback, two channels limit switch, HART protocol can be as options. Input signal:4-20mA two-wire, without other power;supply: 1.4-7.0bar; flow: 130 l/min.
ESPOS Smart Electropneumatic Positioner
●Control process
    The control algorithm of ESPOS positioner based on  measuring process and data statistical analysis, the final control objective is quickly motion without any over-regulation.
    Positioner would test all parameters such as pressure, response time, speed and acceleration; large step and fine step motion on a standard 25mm/2.4bar actuator before factory, this process was done twice under the conditions of  elctronic open-loop and close-loop control and copy the data to MCU processor.
    Above steps would do again when user initialize the control valve at appication field.

Positioner has two copies of data , the controller shoud analysis setpoint and actual position,  according to the difference and acquired experience , microprocessor drive PWM signal to the piezo valves which regulate the flow of air into the actuator. The width of PWM increases or decreases according to the difference between setpoint and actual value.
    MCU recorded the last 1024 periods control parameters at any time, the data will be refreshed every 40ms, positioner can determine exactly the next motion's direction and value, drive E/P a suitable signal to move actuator. The process repeated 12.5 times per second.

    Positioner can also run adaptively when the variables changed such as compress pressure and  flow increase or decrease, leakage of actuator, medium load pressure on pipeline, friction force on actuator pusher. The control algorithm has some artificial intelligence ability.
    When the control valve in trouble, user analysis the data,factory-init, calibration-init, the last 30S record,solve problem as reference.
    The positioner should timely record a typical data to non-volatile rom before breakdown.

ESPOS Smart Electropneumatic Positioner ●Set Parameters
ESPOS Smart Electropneumatic Positioner ESPOS Smart Electropneumatic Positioner

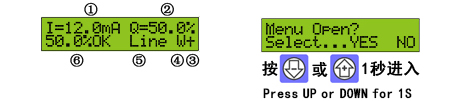

①  Input signal
②  Setpoint
③  + NC / - NO Actuator(If the feed-back lever direction towards right, reverse)
④  W Linear / T Rotary
⑤  Flow curve   Linear / Free / Quick-open/ Quick-open Reverse
⑥  Difference of setpoint and actual

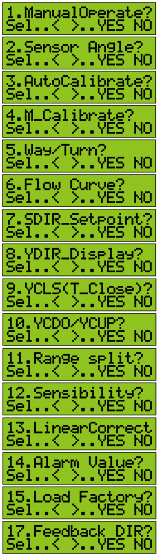

1.   Manual operation,by press UP DOWN
2.   Sensor angle of initial position
3.   Auto calibrate
4.   Manual calibrate at 3 points (ZERO MID FULL)
5.   Linear/Rotary optiones
6.   Flow curve setting,
7.   Setpoint direction ( 4-20mA/20-4mA)
8.   Actual position direction ( 0-100%/100-0%)
9.   Tightly close mode
10. Tightly close value set
11. Input signal range split
12. Sensibility setting, increase  the value when actuator vibration
13. Sine curve compensate when feed-back lever not horizontal at 50% position
14. 2 chanels lited swich setting, change value for 8 output modes
15. Load factory setting
17. Actual position feed back direction ( 4-20mA/20-4mA )
ESPOS Smart Electropneumatic Positioner
ESPOS Smart Electropneumatic Positioner ●Intialization(Clibretion)
ESPOS Smart Electropneumatic Positioner
User intialization:  Open-loop accuracy  +B1=Inlet  -B2=Exhaust , Close-Loop accuracy   +S1=Inlet  -S2=Exhaust
ESPOS Smart Electropneumatic Positioner ESPOS Smart Electropneumatic Positioner
Press Hot-key YES display

         Close-loop
Initialization
+S1=Sensibility for inlet
-S2=Sensibility for  inlet

         Open-loop
Initialization
+B1=Sensibility for exhaust
-B2=Sensibility for exhaust




Press Hot-key NO display
456=Inlet PWM time of standard valve
528=Inlet PWM time of user valve init.
536=Inlet  PWM time of current

624=
Exhaust PWM time of standard valve
664=Exhaust PWM time of user valve init.
680=Exhaust  PWM time of current

536/680
Determine by the previous 1024  date for 30S.
it refreshed 12.5 times per second.
PWM time=N*30.52
µS
Please calibrate by manual when valve without limted block or turn angle >92°

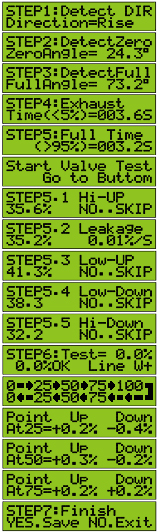

STEP1  Detect the actuator direction rise/fall
STEP2  Dectect the ZERO point
STEP3  Detect the FULL position
STEP4  Time of exhaust (100% to 5%)
STEP5  Time of full (0% to 95%)

STEP5.1 Quick motion for inlet, Time/Speed/Over-control value
STEP5.2 Fine regulation for inlet, get the suitable PWM time
STEP5.3 Leakage measure, it will break when leakage value over 0.8%/S
STEP5.4 Fine motion for exhaust, get the suitable PWM time
STEP5.5 Quick motion for exhaust, Time/Speed/Over-control value

STEP6  Test valve trval to 0-25%-50%-75%-100%-75%-50%-25%-0%.
            Display the hysteresis value.
STEP7  Finish, press YES to save

Display the error information when init. break.

How to calibrate:  MENU  (2. Sensor angle? ) / (4. M_calibrate ?) / (12.Sensibility)
Characteristics
Pneumatic Characteristics ESPOS  Ordering information and description
Parameter Symbol Unit Description ESPOS38①-②-③④⑤

                  ①     1   Single acting
                           2   Double acting

                  ②     0   Faile Safe
                          A   Fali in Place

                  ③     F  4-20mA  Feedback
                           0   None

                  ④     L   Limted Switch
                           0   None

                  ⑤    H   HART Module
                          0   None



Please on request about
ESPOS38X-A-XXX  Fail in plce
Supply pressure Min/Max bar 1.4-7.0
Output pressure Min/Max bar 0 to Source pressure-0.1
Flow  Qn l/min 130@6bar
Medium     Filtered air @30µM
      no or minimal oil
      (max 30mg/m³)
Air Consumption     <0.006Nm³/h
Safe position     Fail safe / Fail in place
Temperature range Min/Max -30 to 60
Electrical Characteristics
Input signal I mA 4-20mA, Two-wire
Min 3.5mA
Load resistance  R Ω <550
Load voltage V V 11.0  @4-8mA
 9.0   @8-20mA

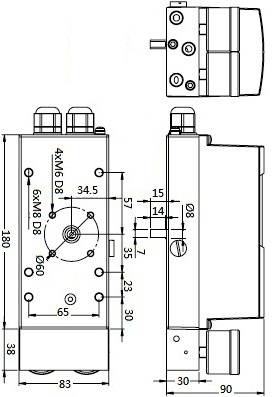

HART Version     Universal 5 Installation size
Response time T mS 80 ESPOS Smart Electropneumatic Positioner
Feed back module
Power supply V V 9-36DC
Output signal  I mA 4-20mA, Two-wire
Isolation voltage V V 500
Two channeles limted switch
Power supply V V 8-32, Two-wire
Limted SW output   mA ON:<1.2  OFF:>2.1
Isolation voltage V V 500
Ex-proof
Intrinsically-safe     ExiallCT6 Ga
Mechanical Parameters
Dimensions   mm 220x83x90
Weight   kg 1.9
Body material     Aluminium alloy

●Installing Accessory
ESPOS Smart Electropneumatic Positioner ESPOS Smart Electropneumatic Positioner ESPOS Smart Electropneumatic Positioner
 Single  Double      16-60mm  16-110mm
ESPOS Smart Electropneumatic Positioner ESPOS Smart Electropneumatic Positioner ESPOS Smart Electropneumatic Positioner
PA007 Mounting Board PA008 lever Axis PA009 Mounting kit for Rotory

●Special Versions
Stainless steel housing positioner
on request
