Fife CSP-01R edge controller, SE-22 infrared sensor

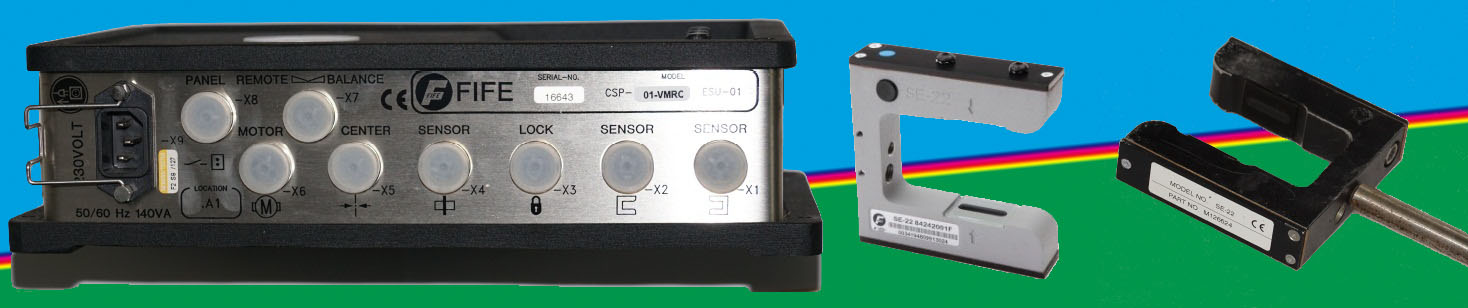

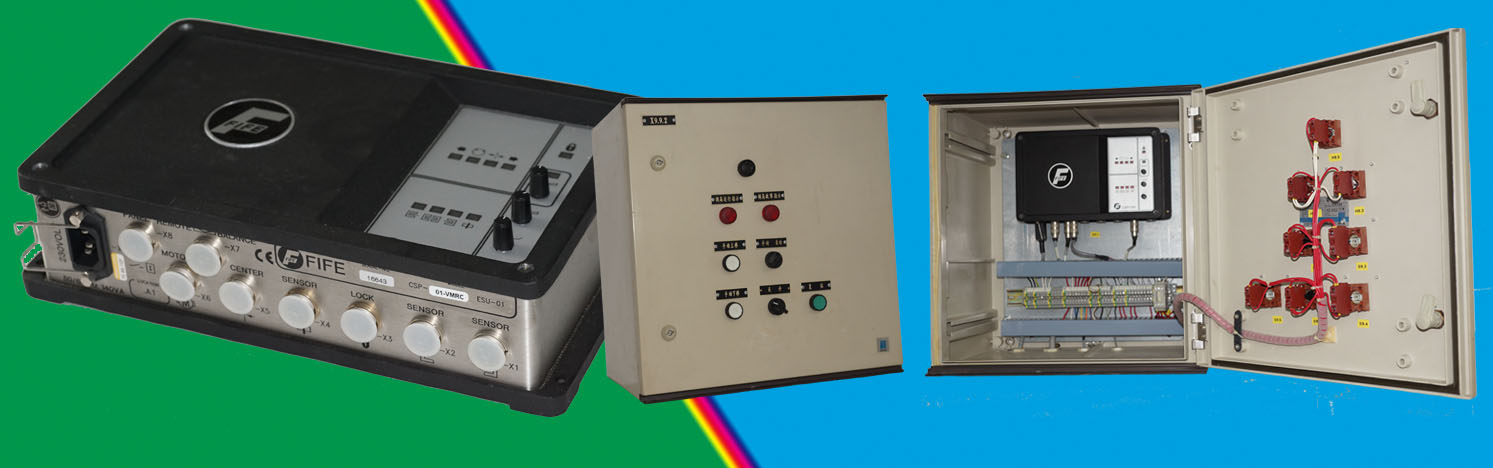

●Fife CSP-01R Fife controller sensors and drive interface
Fife series sensors: infrared sensors, ultrasonic sensors, pneumatic sensor
Electric motor
Electric-hydraulic servo valve
CSP-01R with internal PID close-loop control, provide various parameters setting, sensitivity zone, asymmetric edge, alarm threshold, specialized in different materials web
●SE-22 infrared sensors
Infrared sensors SE-22 is mainly used with the edge inspection, also applies to the central inspection ( dual sensors). Standard sensing gap is 50.8 mm(2 inches) with a control range of 15 mm (0.6 inch). Allows for significant guide point adjustment, SE-22 can be guided transparent film and unaffected by ambient light,including sunlight.

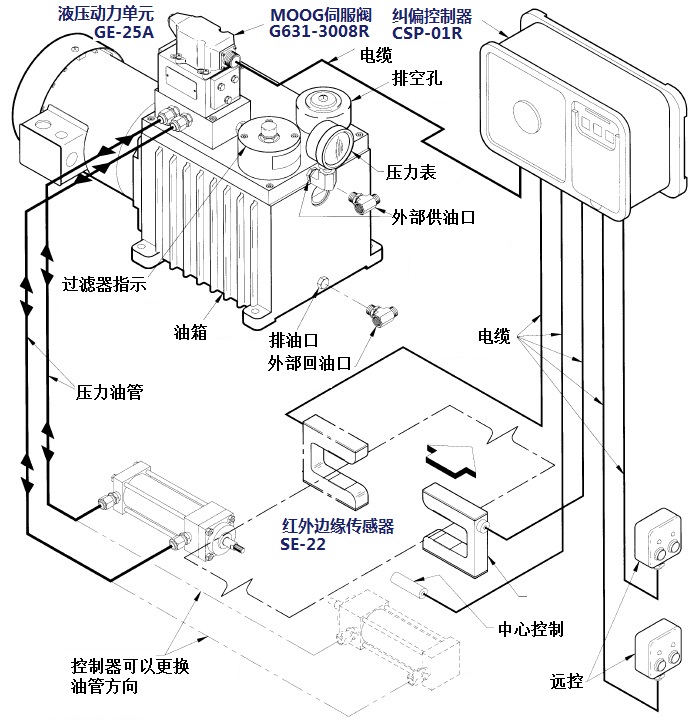

●A typical correction control

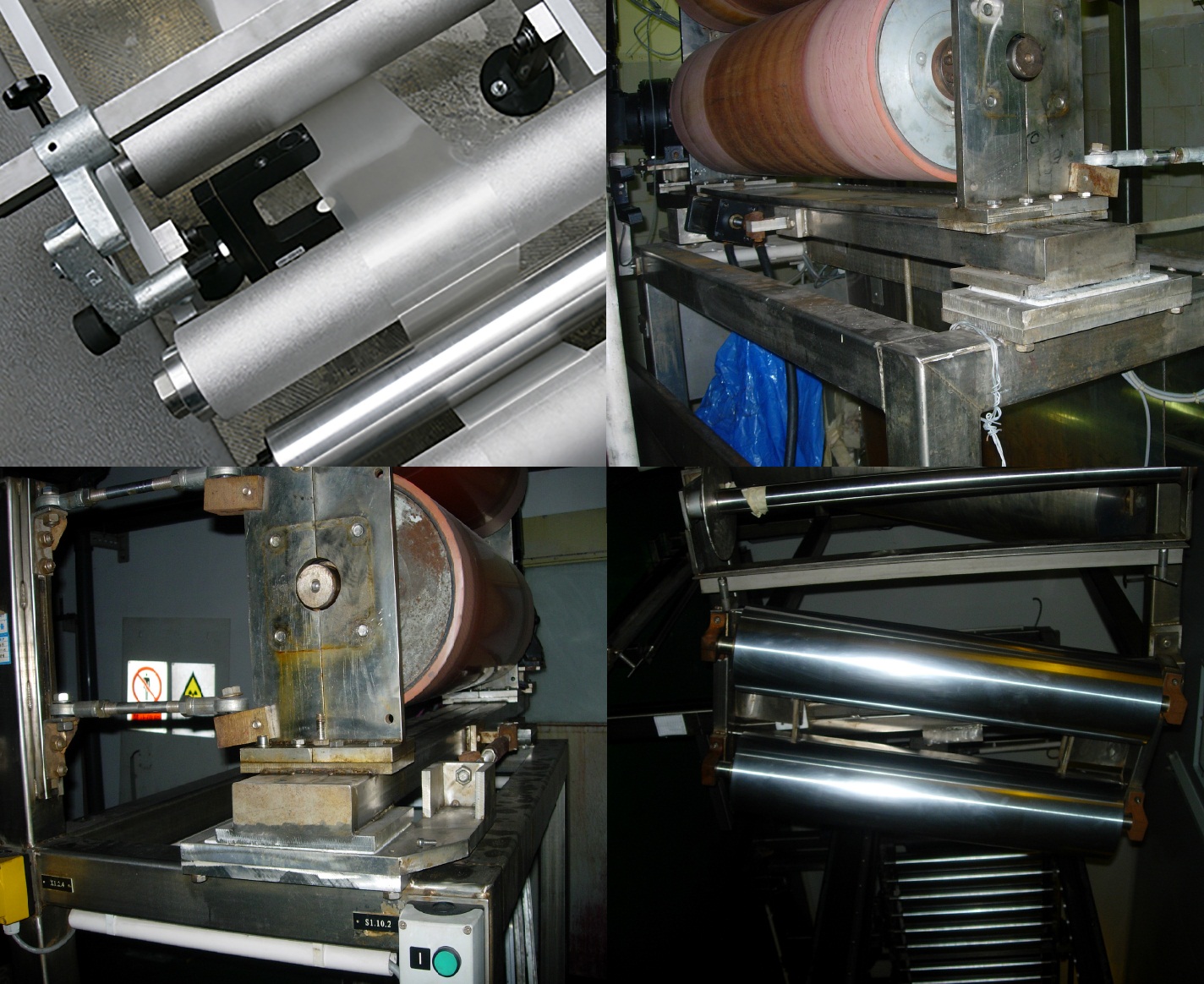

● Application field
