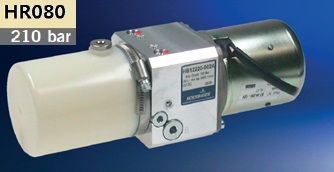

Micro Electrohydraulic Power Units HR080/HR120, up to 210Bar
Micro-hydraulic power unit HR080/HR120, compact design includes a hydraulic radial piston pump, control valves, tank, motor. It install easily with flat flange, tubeless architecture, plug and play.

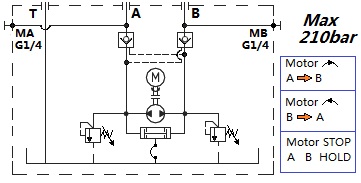

HR080/HR120 provide high output pressure at 210bar, change direction of the motor can reverse the direction of actuator, motor operate mode S3-10%. It is almost without any fault follow the requirements.
Applied high force demanding occasions, mechanical clamping device, valve control, equipment on board, security engineering.
Applied high force demanding occasions, mechanical clamping device, valve control, equipment on board, security engineering.
 |
Plug and play, up to 210bar HR080 100x100x280mm 4.0kg HR120 174x125x305mm 5.5kg Reverse the direction by electric Multi power option 12VDC/24VDC/220VDC/380VAC |
 |
 |
| HR080 | HR120 | HR080 HR120 Current/Pressure/Flow | |
| Hydraulic characteristics |  |
||
| Pump type | Radial piston pump | ||
| Displacement | Max210bar see characteristic curve | ||
| Reversing operation | Possible | ||
| Tank volume | 0,3L total volume
0.23L effective volume
|
0.7 L | |
| Hydraulic medium | According to DIN 51524 | ||
| media temperature range | min=-10℃ max=+70℃ | ||
| Viscosity range | min=10mm2/s max=100 mm2/s | ||
| Electrical characteristics | |||
| DC motor | 12DC/24DC 190W/190W | none |
|

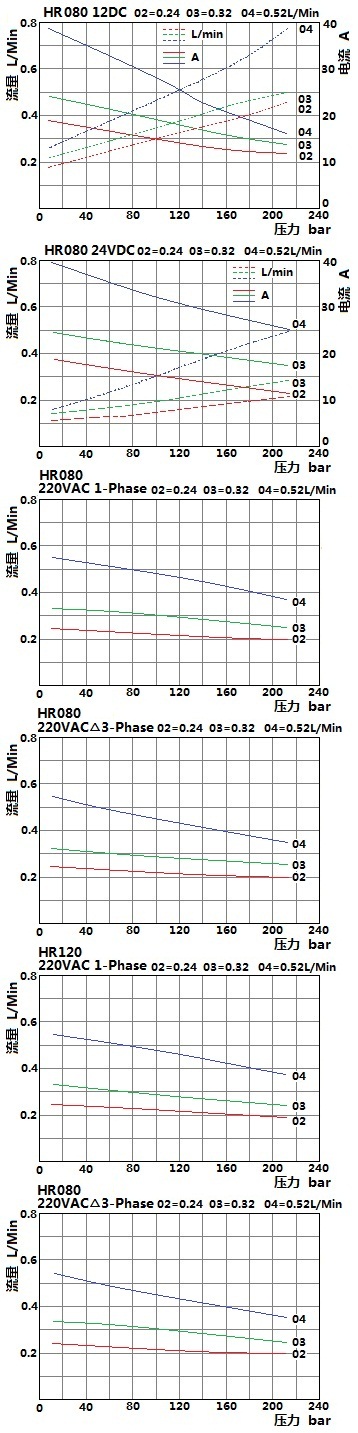

| Current/Pressure/Flow | Max 210bar See characteristic curve; |
||
| Duty cycle of operation | S3-10% | ||
| Electrical protection | IP40 DIN40050 | ||
| 230 VAC , 1-phase | 230VAC 50 60HZ/300W | ||
| Drive speed | 3000 n/min 50HZ | ||
| Current consumption | Starting Max 4.0A Normal 1.6A |
||
| Capacitor | 10µF | ||
| Duty cycle of operation | S3-10% | ||
| Overload protection | +140℃, self-starting after cooling | ||
| Electrical protection | IP40 DIN40050 | IP65 | |
| VAC △, 3-phase | 230VAC 50 60HZ/300W | ||
| Current consumption | 50/60Hz 0.85/0.5A | ||
| Drive speed | 3000/min 50HZ | ||
| Duty cycle of operation | S3-10% | ||
| Overload protection | +160℃, fused | ||
| Electrical protection | IP44 DIN40050 | IP65 | |
| VAC Y, 3-phase | 400VAC 50 60HZ/300W | ||
| Current consumption | 50/60Hz 0.55/0.5A | ||
| Drive speed | 3000/min 50HZ | ||
| Duty cycle of operation | S3-10% | ||
| Overload protection | +160℃, fused | ||
| Electrical protection | IP44 DIN40050 | IP65 | |
