MAXCESS Fife Electrohydraulic Power Unit GE25A

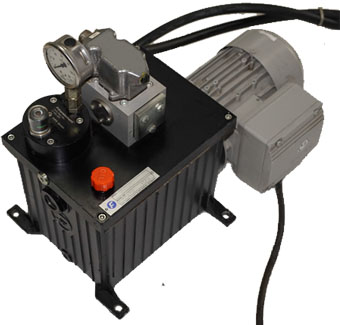

MAXCESS Fife GE-25/10 electric hydraulic power unit equipped with SIEMENS Ex-proof motor and MOOG servo valve, provide high-precision hydraulic servo motion with strong force output, from light to heavy load control. the power unit can be used for precise force control and displacement servo control. Desktop assembly robots, desktop manufacturing equipment. The power unit can work continuously in hazardous areas.
MAXCESS Fife GE-25/10
● Application field
| Ex-proof Motor SIEMENS |
50HZ 230/400 0.25KW △/Y 1.39/0.80A 1310n/Min II2G EEx e II |
 |
| Tank | 6.8L | |
| Flow | 2.5l/min at 50HZ 3.0l/min at 60HZ | |
| Pressure | 26bar at 50HZ 21bar at 60HZ | |
| Pout | Supply-△P △P=2bar | |
| MOOG Servo valve |
MOOG G361-3008B Type: H10JDFM4VBR Pp=300Bar (4500psi) Input singnal: -100 To +100mA Ri= 56Ω |
● Application field
 |
Designed specifically for web guiding, electric hydraulic power unit work with Fife CSP-01R edge controller and SE-22 infrared sensors, meet the requirements of many guiding control. Its compact design, easy installation, low maintenance costs and high durability make it attractive option of guiding control. Should achieve multi-channel controlling when more servo valves packed in GE-25/10 power unit, please consider the flow requirements. |
